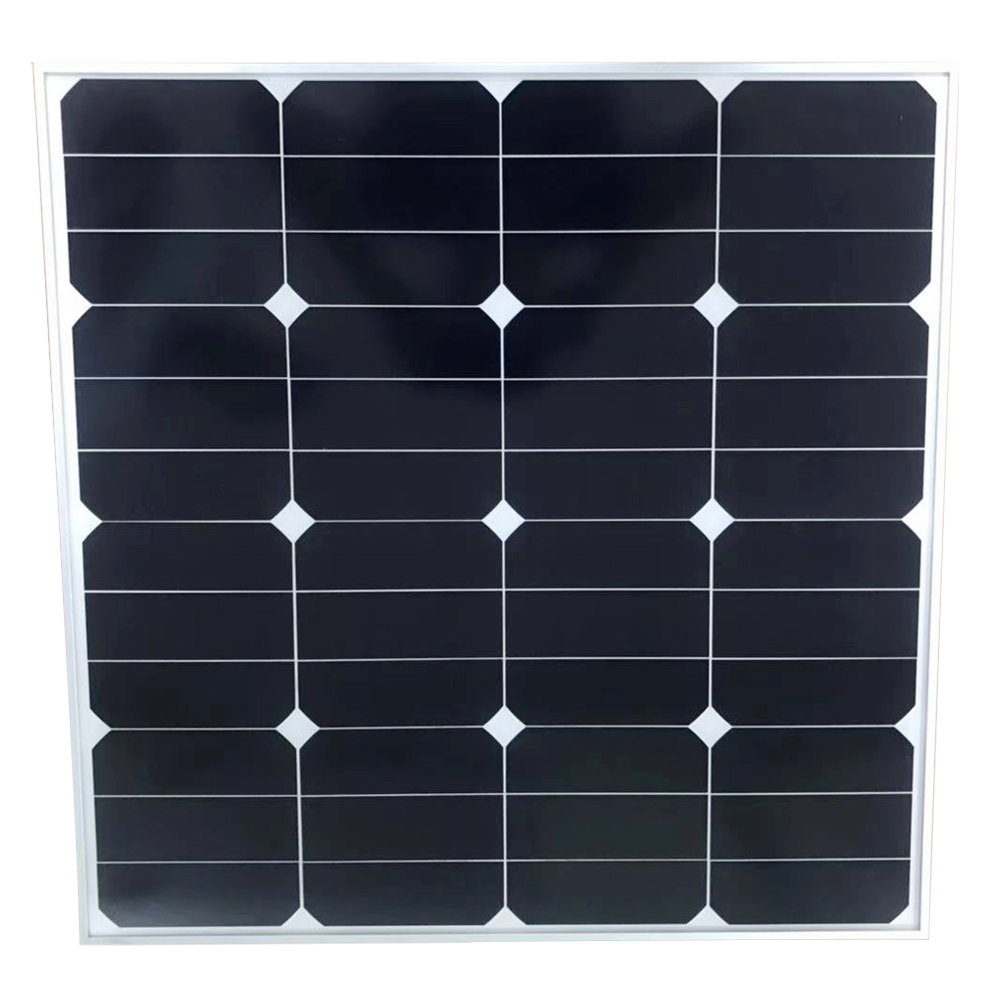

60W sun power maxeon 3 glass solar panel 550*550*30mm with Al-frame customization
Quick Details
Place of Origin: China
- Brand Name: OEM
- Model Number: XXR-H60W (Al-frame)
- Cell size: 125mmx125mm sunpower cell
- Type: ETFE flexible sunpower panel, Customized Solar Panel
- Panel Dimensions: 550*550*30mm
- Panel Efficiency: 24.3%
- Certificate: CE ROHS
- Warranty: 10 YEARS,

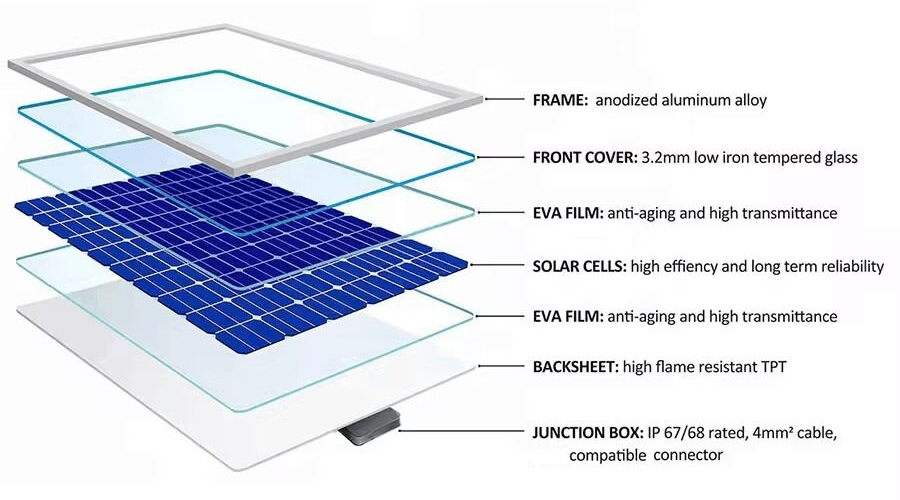

- Material: glass+ sunpower+eva+backsheet +Al-frame etc
- Weight: 3.5kg
- panel power watt: 60W
- Vmpp:26v
- Impp: 2.3A
- Voc:30v
- Isc:2.53A
- Temperature: -40℃ to +80℃
The panel size/voltage/shape/power/connector...all can be customized.. please contact us if you need any others
SOME STEPS TO CUSTOM YOUR SOLAR PANEL
Step 1: Tell us your requests about power/voltage/shape/size.....(contact us if you are not sure).
Step 2: check our optional design and quotation
Step 3: confirm samples and bulk production
Custom made solar panel example
Features of different coating
Connector ---Can use different connectors
-
