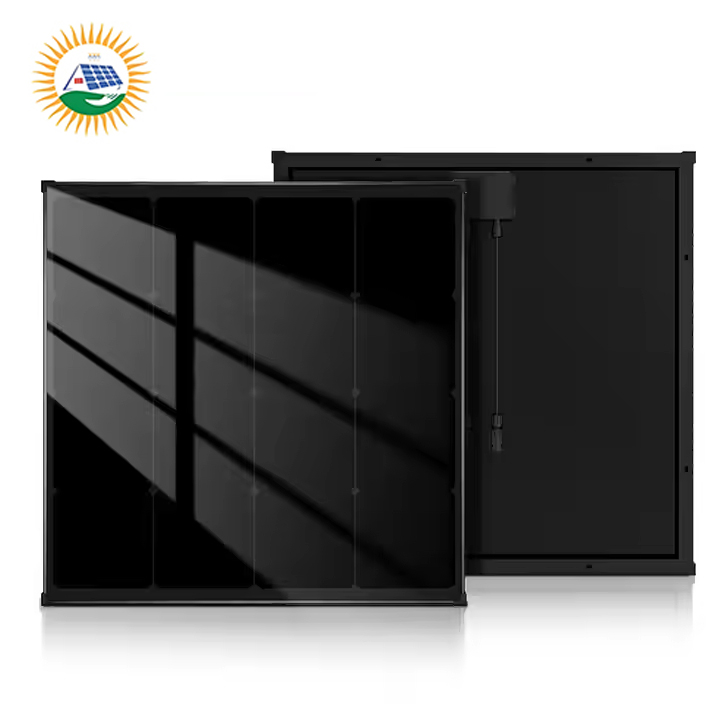

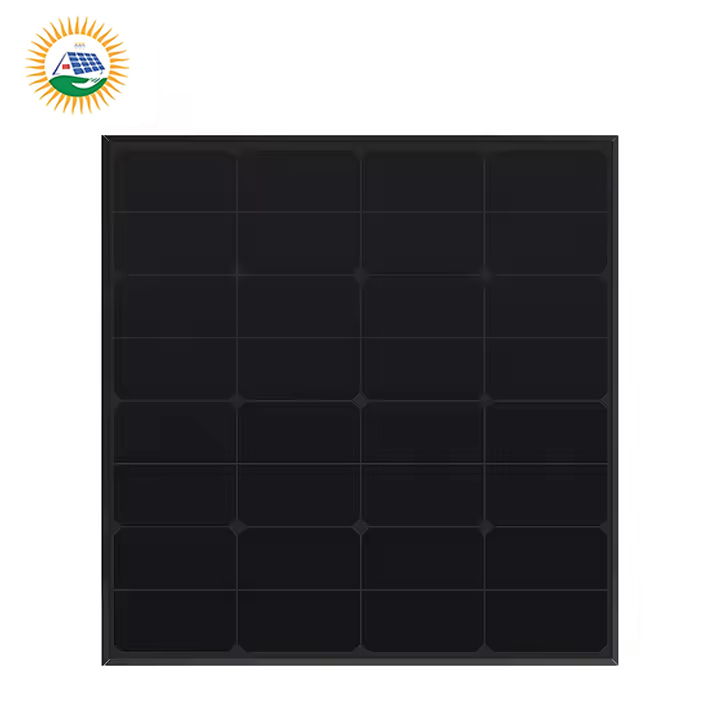

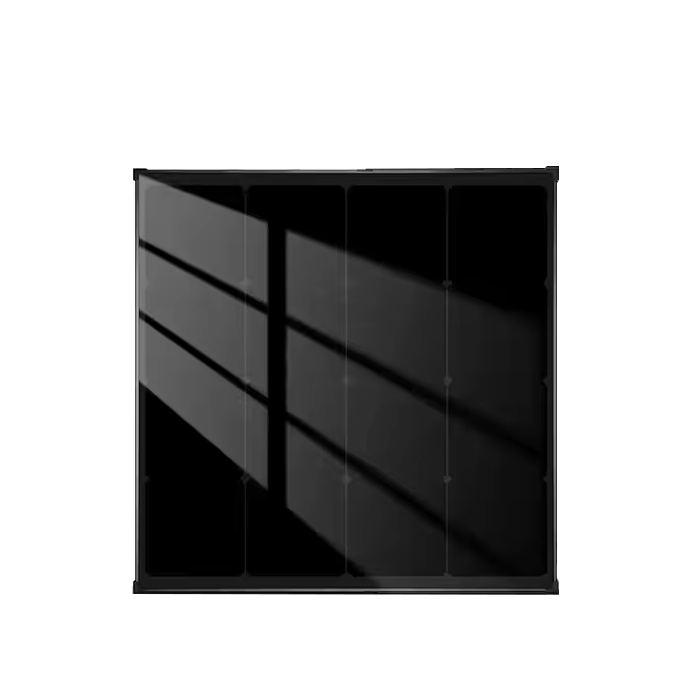

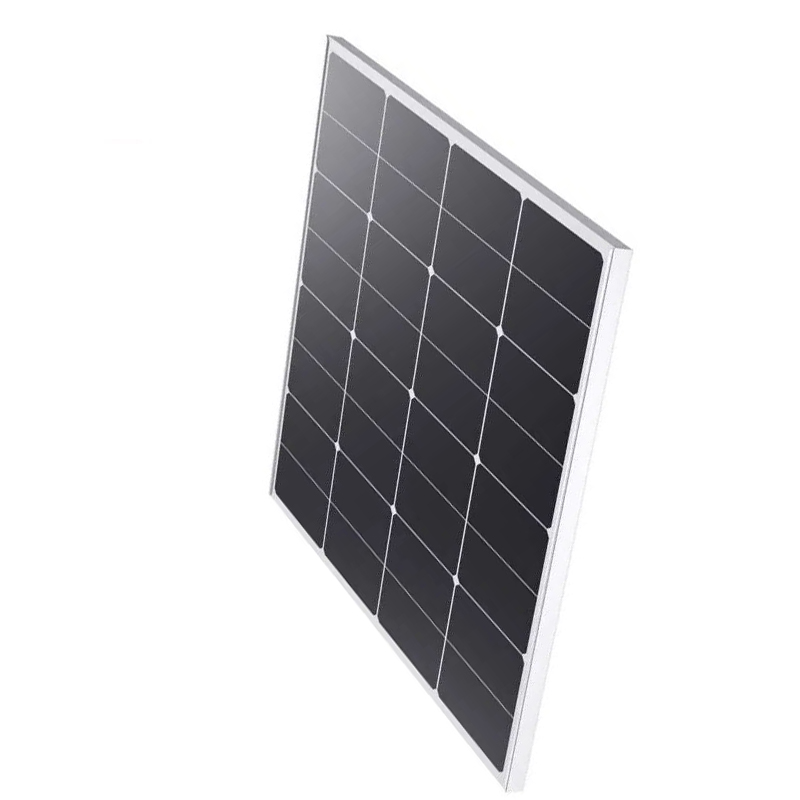

Product name OEM 105W Full Black Mono IBC Glass Solar Panel
Place of Origin: China
Brand Name: OEM
Type: Half Cell, All Black, Bifacial, IBC, N-TYPE
Feature: Half Cell N Type Backcontact IBC Solar Module

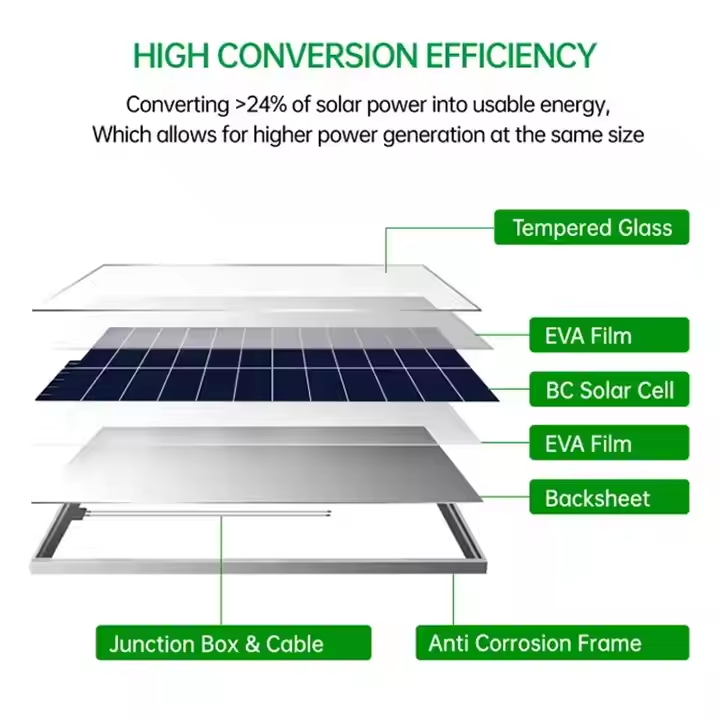

Material: frame+Glass+EVA film+ibc solar cells+EVA film+backsheet+junction box
Module size: 700*710*30mm
Panel Efficiency:21%+
Cell size IBC 166*83mm
Maximum Power(Pmax): 105w
Maximum Power Voltage(Vmp): 19.2v
Maximum Power Current(Imp): 5.47A
Open Circuit Voltage(Voc): 22.66v
Short Circuit Current(Isc): 6.01A
Color: all black, or customized

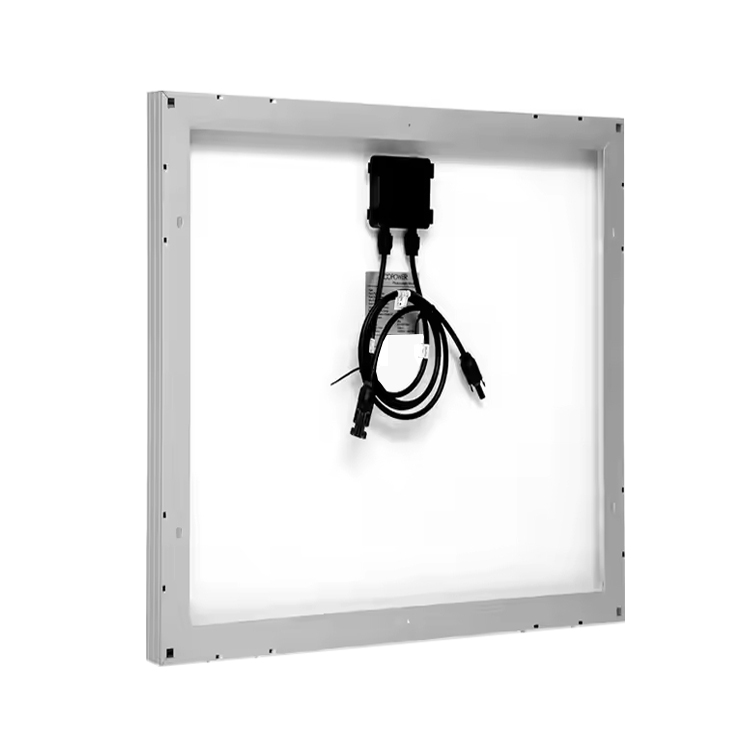

Junction Box: IP67 Rated Waterproof
Glass: 3.2mm Coated Tempered Glass
Frame: Aluminum
Maximum System Voltage: 1000V DC
Power tolerance(W): ±3%
Panel weight: 6kg
OEM Order: Accept, Panel size shape power voltage color... all can be customzied
Operate temperature: -30℃ ~ +70℃

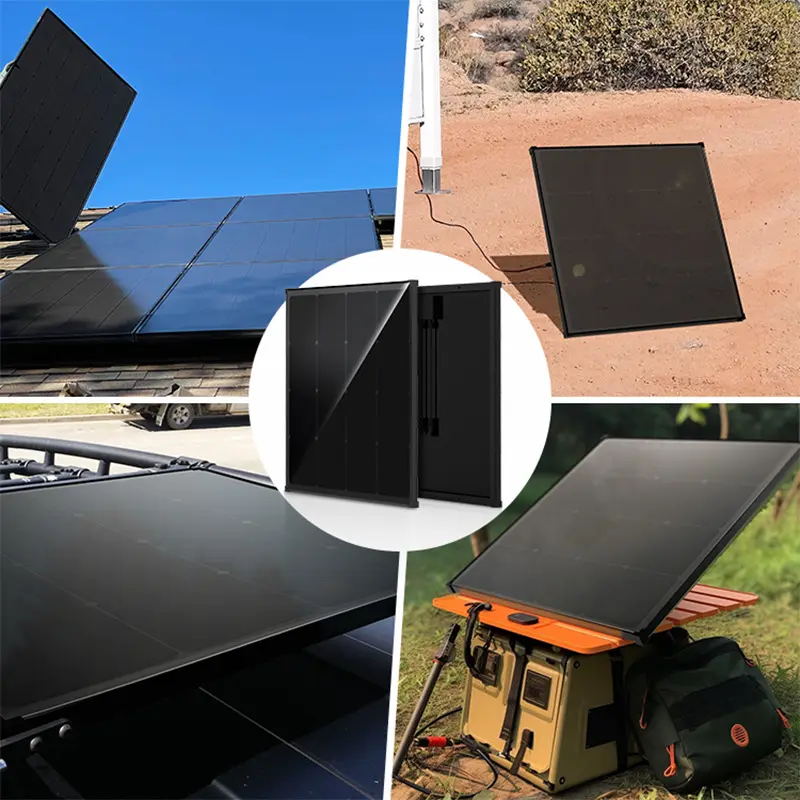

Application: Solar rooftop, RV, Yacht, Curtain wall, Carport...
Warranty: 15years
The panel size/voltage/shape/power/connector...all can be customized.. please contact us if you need any others
SOME STEPS TO CUSTOM YOUR SOLAR PANEL
Step 1: Tell us your requests about power/voltage/shape/size.....(contact us if you are not sure).
Step 2: check our optional design and quotation
Step 3: confirm samples and bulk production

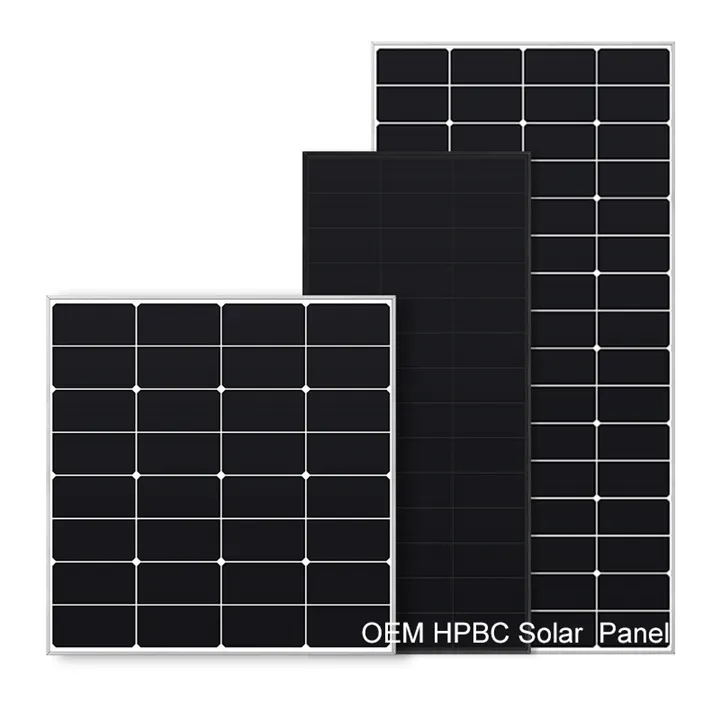

Custom made solar panel example

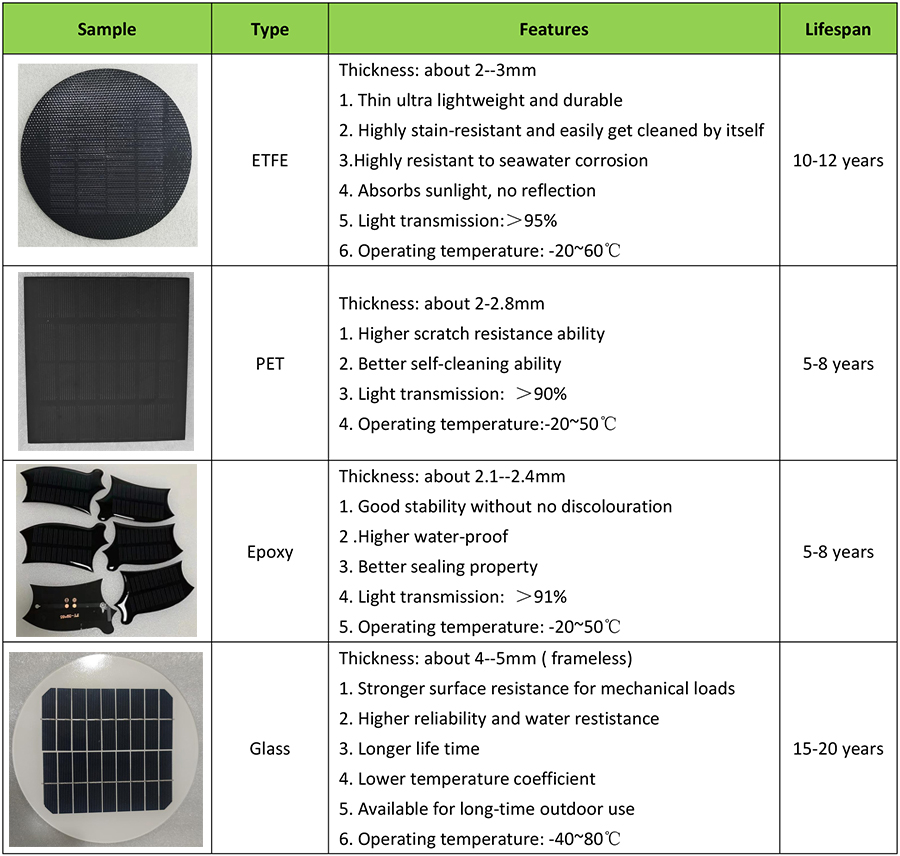

Features of different coating
Connector ---Can use different connectors
