PV JB box Integrated SMD Diode of 20/25 Amp. for Solar Split Junction Box

PV JB box Integrated SMD Diode of 20/25 Amp. for Solar Split Junction Box

Place of Origin: China
Brand Name: XXR
Model Number: XXR-Solar Split Junction Box
Product name:  XXR PV JB box
Material: PC/PPO material
Conductor material:  copper plated tin
Type: PV Solar Connector
Application: Solar System Connection
Color: Black
Rated Current: 20 & 25A
Rated Voltage: 1000V/1500V DC
Protection Level: IP67/IP68
Temperature Range:  -40℃ ~ +85℃
Wiring specifications: 4mm², 6mm²
Contact resistance:   ≤0.5mΩ
Flame retardant rating:  UL94-V0
Selling Units: Single item
Single package size: 10X10X10 cm
Single gross weight: 0.700 kg

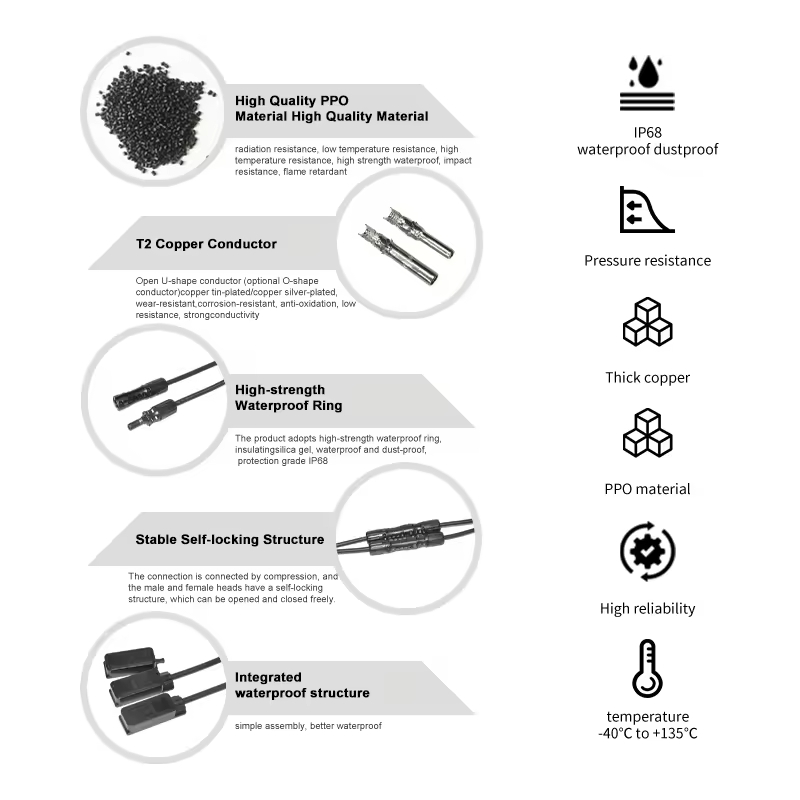

Split junction box.With IP68 protection grade,UL94-VO flame retardant grade,strong aging resistance,radiation resistance, high temperature resistance,low temperature resistance, excellent electrical conductivity, easy installation,long-term use. For outdoor use, it also has TUV, CE, ROHS, REACH, UKCA certification.1. High quality PPO material2.T2 Copper conductor3.High strength waterproof ring4. Stable self-locking structure5. Protection level IP686. Strong adaptability to the environment.

DETAILED IMAGES

------§-----
