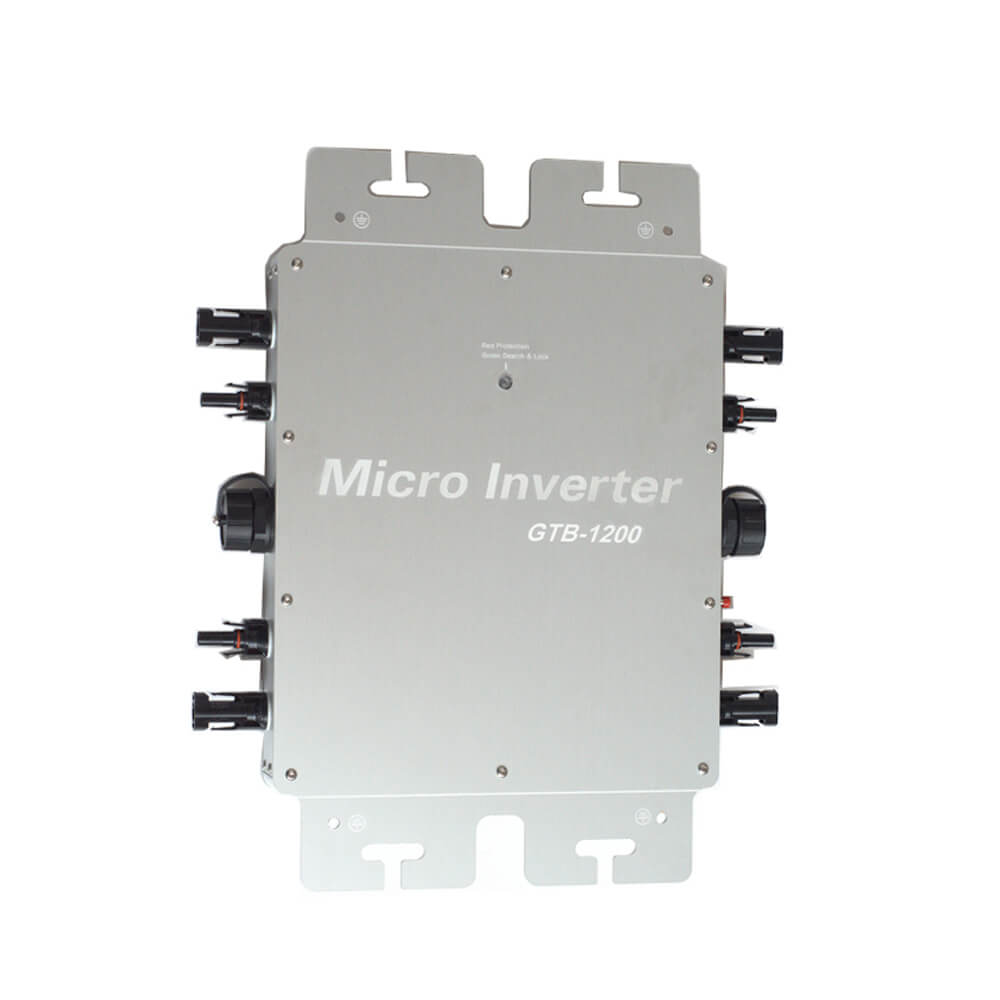

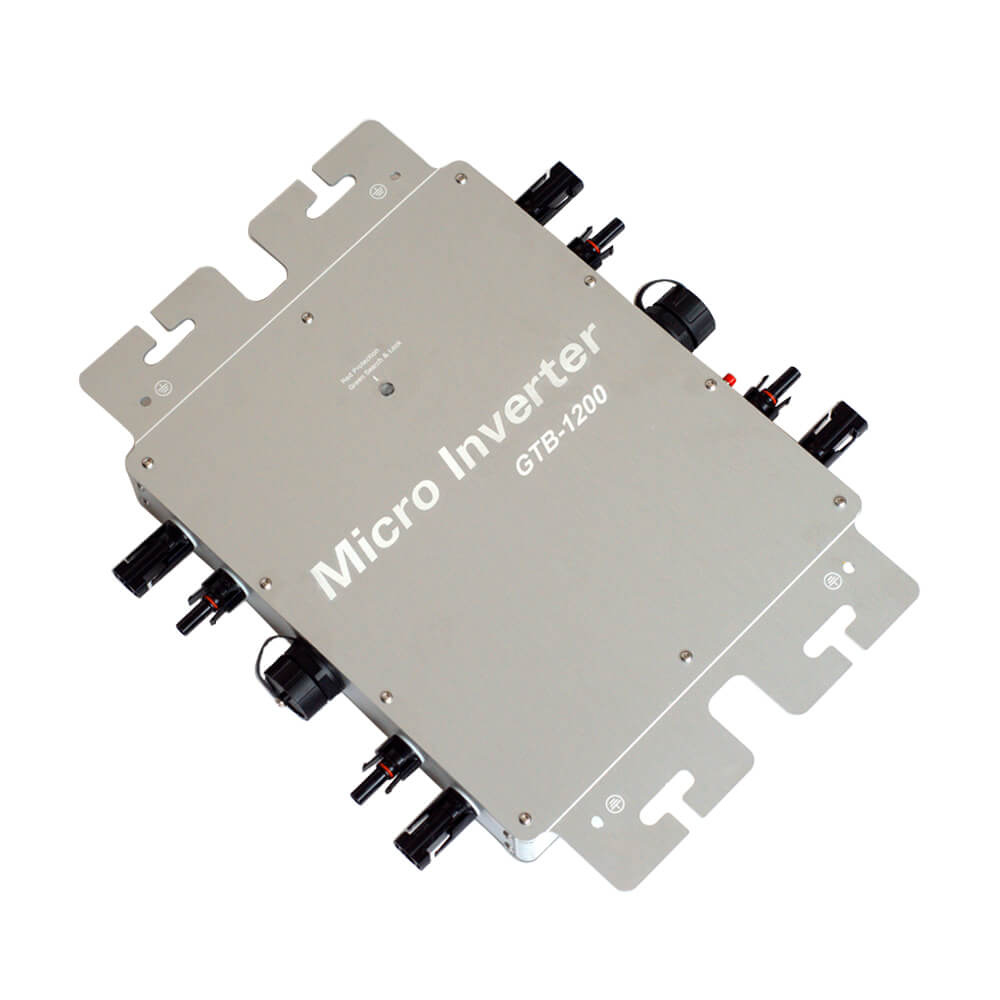

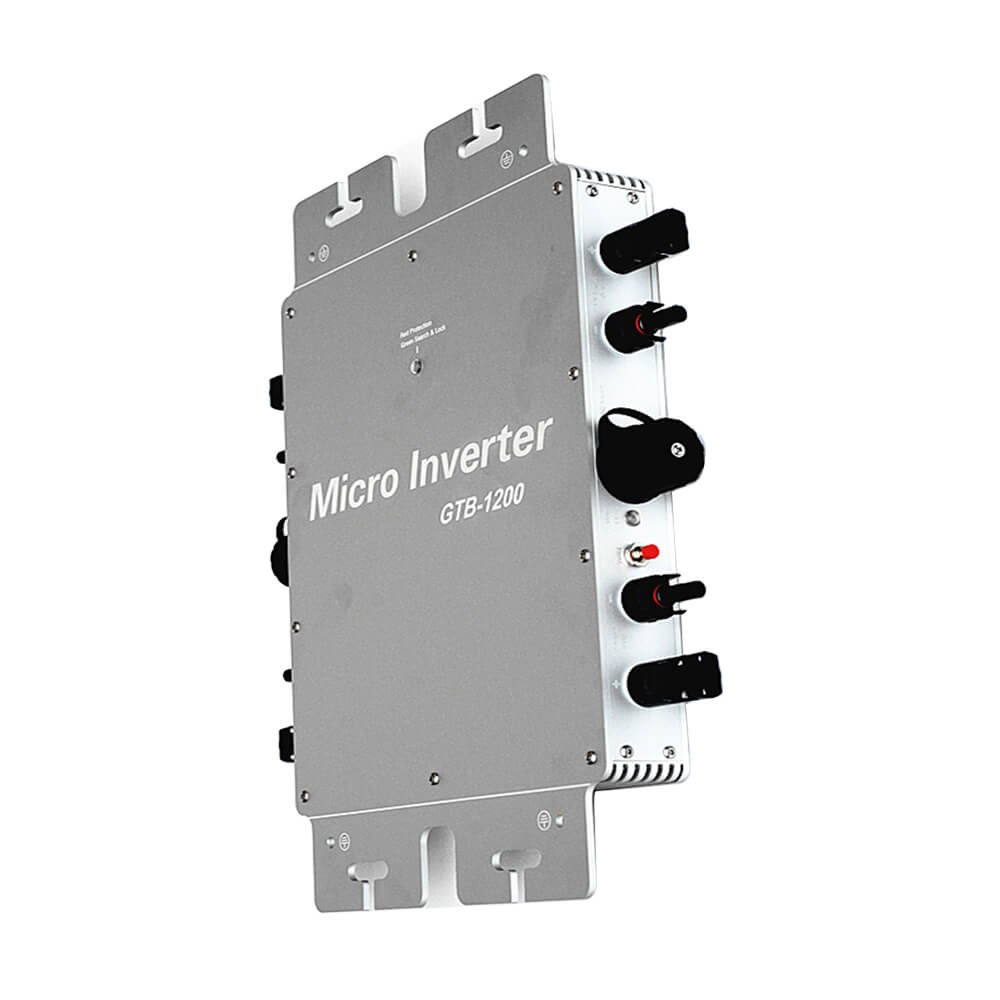

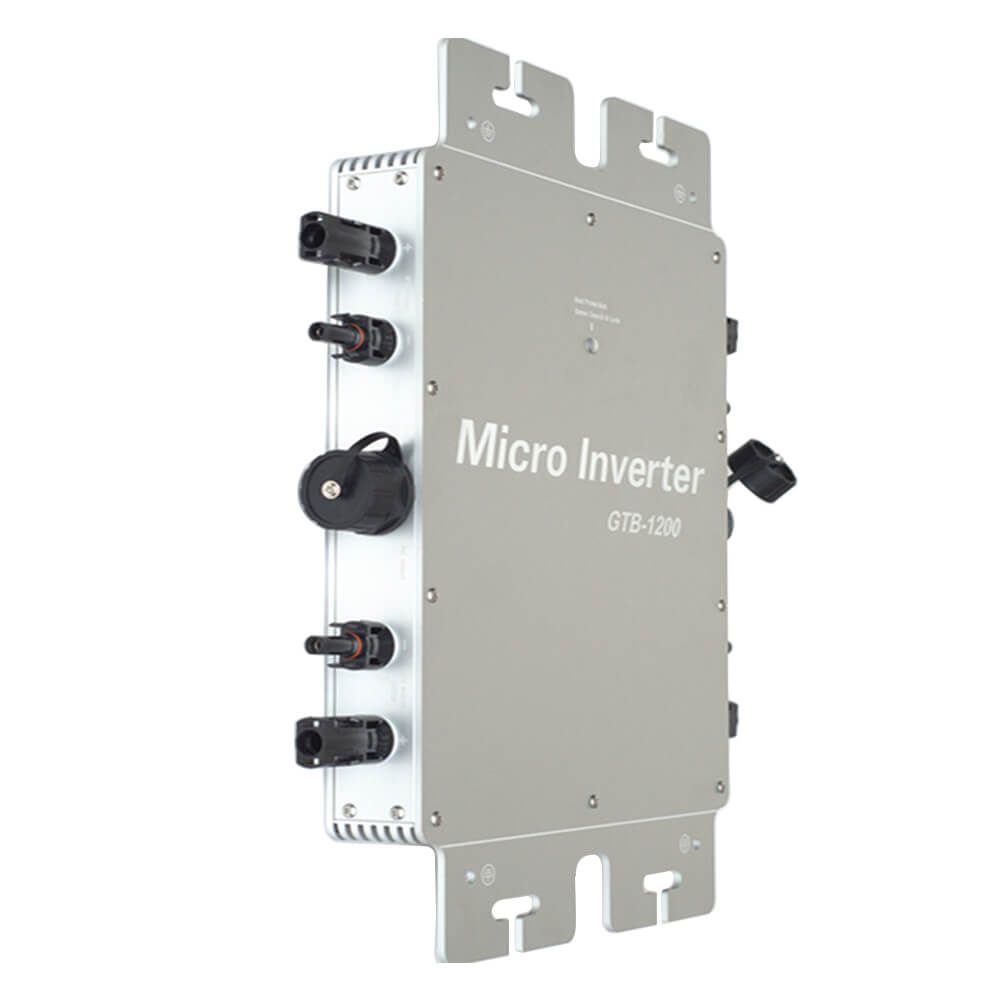

XXR-GTB1200W, Using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking (MPPT) Function,Better able to track changes in the solar luminosity and control different output power, Effectively capture and collect sunlight. AC electric power transmission using the reverse transmission technology, Is one of our patented technology, The inverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.
| Model | GTB-1200 | |
| Maximum input power | 1200Wat | |
| Peak power tracking voltage | 22-50V | |
| Min / max starting voltage | 22-55V | |
| Maximum DC short-circuit | 60A | |
| Maximum input operating current | 54.5A | |
| Output Data | @120V | @230V |
| Peak power output | 1200Watt | 1200Watt |
| Rated output power | 1200Watt | 1200Watt |
| Rated output current | 10A | 5.2A |
| Rated voltage range | 80-160VAC | 180-260VAC |
| Rated frequency range | 48-51/58-61Hz | 48-51/58-61Hz |
| Power Factor | >99% | >99% |
| Max unit per branch circuit | 3pcs(Single-phase) | 5pcs(Single-phase) |
| Output Eifficiency | @120V | @230V |
| Static MPPT efficiency | 99.5% | 99.5% |
| Maximum output efficiency | 95% | 95% |
| Night time power consumption | <1W | <1W |
| THD | <5% | <5% |
| Exterior & Feature | ||
| Ambient temperature range | -40°C to +60°C | |
| Dimensions (L × W × H) | 365mm×300mm×40mm | |
| Weight | 2.81kg | |
| Waterproof rating | IP65 | |
| Cooling | Self-cooling | |
| Communication Mode | WiFi mode | |
| Power transmission mode | Reverse transfer,load priority | |
| Monitoring System | Mobile APP, PC browser | |
| Electromagnetic Compatibility | EN50081.part1 EN50082.Party1 | |
| Grid disturbance | EN61000-3-2 Safety EN62109 | |
| Grid detection | DIN VDE 0126 | |
| Certificate | CE ,BIS | |
