Water proof Sunpower c60 ETFE solar panel 1460*540mm 44 series 24.2v high efficiency

Quick Detail
Place of Origin: China
Brand Name: OEM
Model Number: XXR-ETFE-sunpower solar panel-165W
Cell size: mono 125*125mm
Cell number: 44
Panel Efficiency: 23.4%
Type: Customized Solar Panel, Flexible, ETFE panel

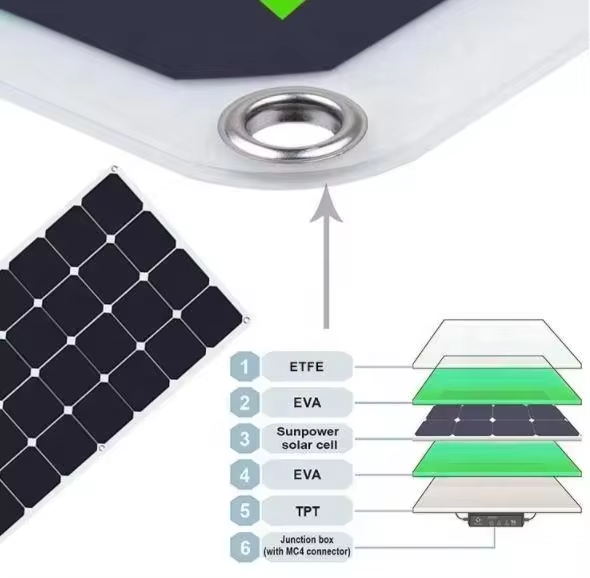

Material: ETFE+eva+sunpower solar cell+eva+backsheet TPT+junction box etc
Warranty: 8 years
Power warranty: 10 years of 95% output power, 20 years of 90% output power
panel Weight: 2.56kg
watt: 165W watt can be customized
Vmpp: 24.2v
Impp:6.81A
Voc: 28.5v
Isc: 7.5A
size: 1460*540*3mm, size can be customized
Junction box protection class: IP67
Cable: 90cm with Connector
Certificate: CE ROHS
Frame Type: frameless
Temperature: -40℃ to +80℃

DETAILED IMAGES

---------§---------

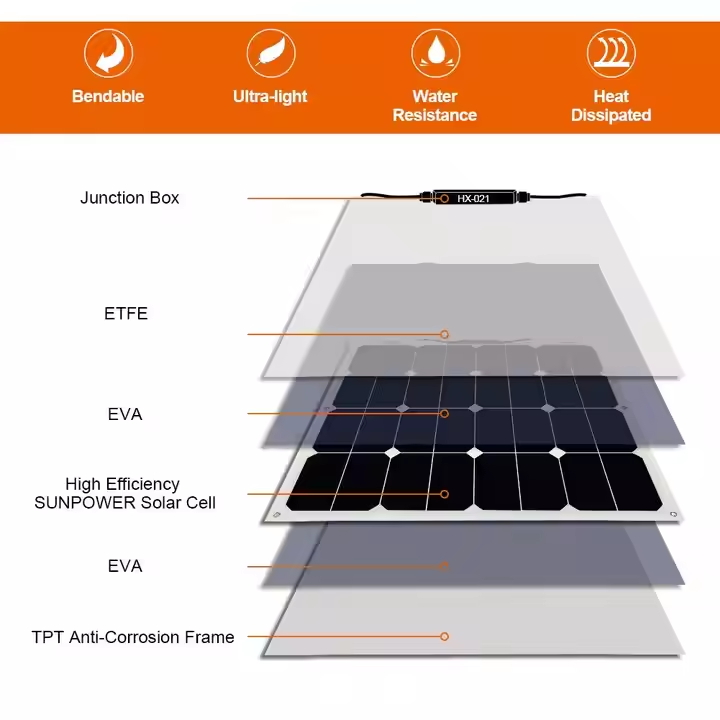

Features of different coating





Connector ---Can use different connectors

Custom made solar panel example





The panel size/voltage/shape/power/connector...all can be customized... please contact us if you need any others
SOME STEPS TO CUSTOM YOUR SOLAR PANEL
Step 1: Tell us your requests about power/voltage/shape/size.....(contact us if you are not sure).
Step 2: check our optional design  and quotation
Step 3: confirm samples and bulk production
