Wholesale Price 25.4% High Efficiency New Upgrade Sunpower Maxeon Gen 7 Bin Pe3 min 3.94W 125*125mm solar cell Mono Sunpower Solar Panel Cells

Wholesale Price 25.4% High Efficiency New Upgrade Sunpower Maxeon Gen 7 Bin Pe3 min 3.94W 125*125mm solar cell Mono Sunpower Solar Panel Cells

Place of Origin:California, United States
Brand Name:sunpower
Model Number:XXR-sunpower 125*125mm Bin Pe3
Type:IBC, Bin Pe3
Cell Efficiency:25.4%
Product name:125*125mm sunpower 3.94w Je3 high efficiency sunpower solar cell
Sunpower material:monocrystalline silicon
Color:dark blue
Size:125*125mm
Sunpower busbar:none busbar
Weight:1.5 kg /150pcs
Power watt:3.94w
Efficiency:25.2%
Vmpp: 0.55V
Ioc:7.16A
stock ability:108K pcs stock
deliver:within 1-3 days deliver
Warranty:5YEARS

DETAILED IMAGES

 ---------§---------

Maxeon Technology High Efficiency Solar Cell

Every day, entrepreneurs, designers, adventurers and explorers are changing the way our world is powered by placing their trust in Maxeon technology. We share your spirit of excellence and relentless innovation, which is reflected in most powerful and durable cell to solar enthusiasts. Together, even the boldest goals are within reach.
Maxeon® Technology
• Ultra-pure, n-type, monocrystalline silicon for maximum power
• Tin barrier prevents corrosion
• Uniquely durable back-contact design with no ribbons
• Clean and elegant aesthetics by designing out front contacts

Trusted Durability

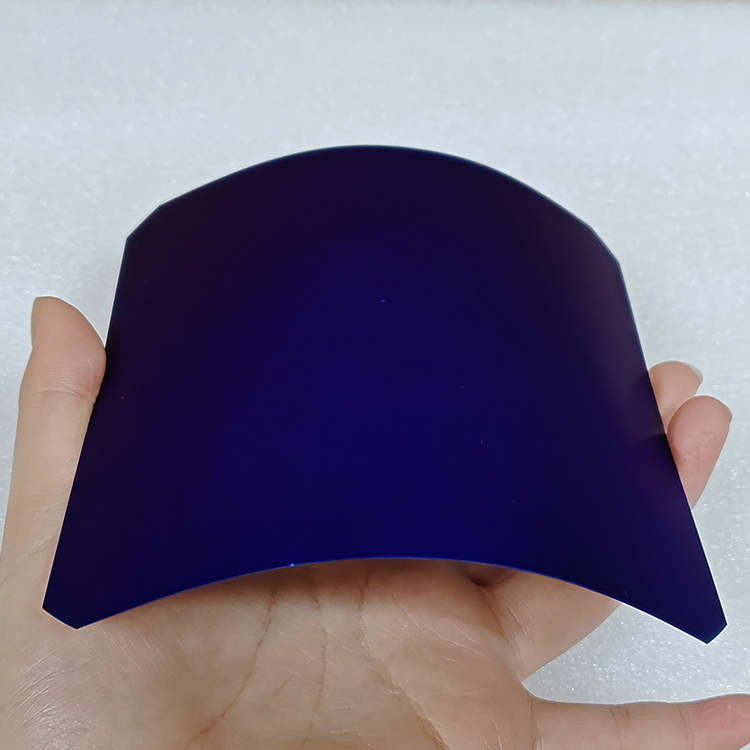

Solid metal foundation helps cell bend where others break under pressure.
Conductive and malleable foundation keeps cell electrically intact even if eventually cracked.
Maxeon cells solder to lead-free components and are RoHS compliant.

Proven Technology Platform

Maxeon has deployed more than one billion cells across more than 9 GW of installed solar - with a very low warranty return rate of 0.005%. Maxeon’s industry-leading R&D team has invested deeply in generations of incremental  design enhancements over three decades.

Maxeon Gen 7 ® High Efficiency Solar Cell

Electrical Characteristics of typical Maxeon Gen 7 Cell
Positive Electrical Grounding
If cell voltage is below frame ground the cell power output will be reduced. Therefore, modules and systems produced using these cells should be configured as “positive ground system”. If this creates a problem, please consult with Maxeon.

Cell Physical Characteristics

Bond pad area dimensions are 5.6mm x 3.0mm Metal finger pitch between positive and negative fingers is 486um
Positive/Negative pole bond pad sides have “+/-” indicators on leftmost and rightmost bond pads

Packaging

Cells are packed in boxes of 1500 each; grouped in 10 shrink wrapped stacks of 150 with interleaving. 24 boxes are packed in a water-resistant “Master Carton” containing 36,000 cells suitable for air transport.
