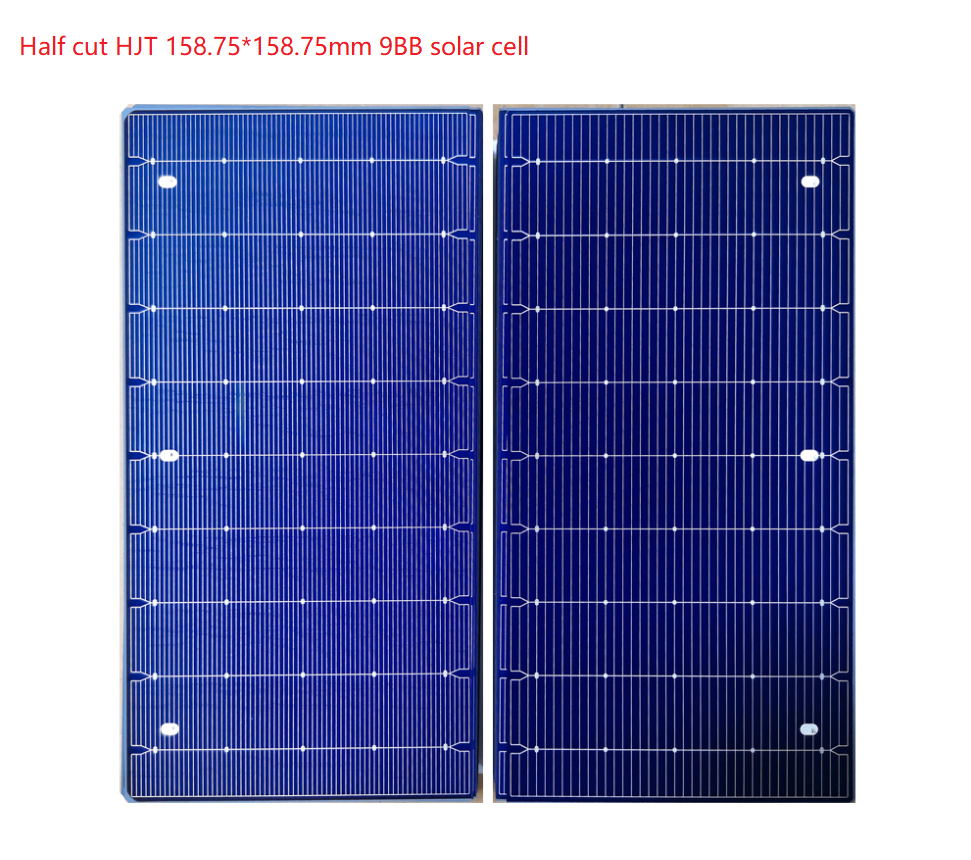

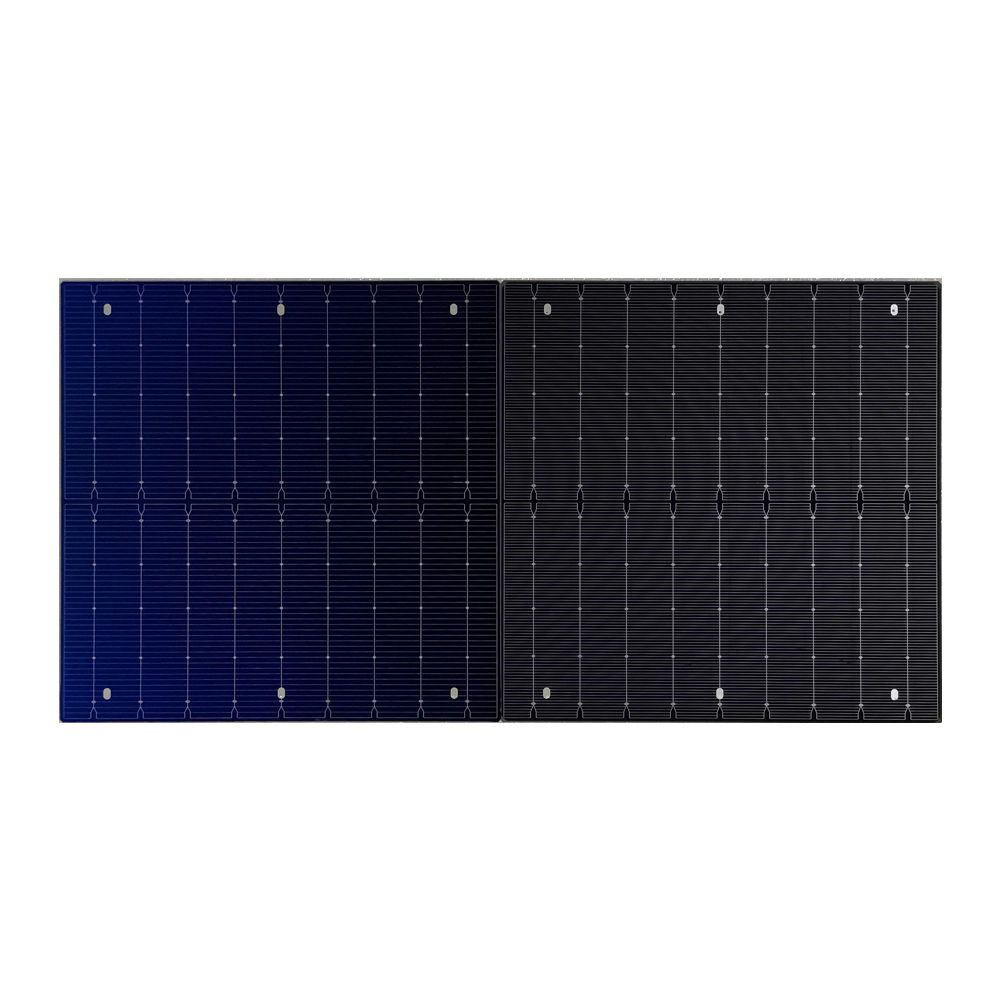

HJT solar cell 158.75*158.75mm N type 9bb mono flexible bifacial solar panel cells

HJT solar cell 158.75*158.75mm N type 9bb mono flexible bifacial solar panel cells

Production Description

Cell Efficiency: 23%
Place of Origin: Taiwan, China
Brand Name: OEM
Model Number: XXR G1-158.75
Product name: 158.75 x 158.75 mm 9BB 22% 23% Mono Solar Cell
Material: Monocrystaline Silicon
Solar Cell Busbar: 9BB

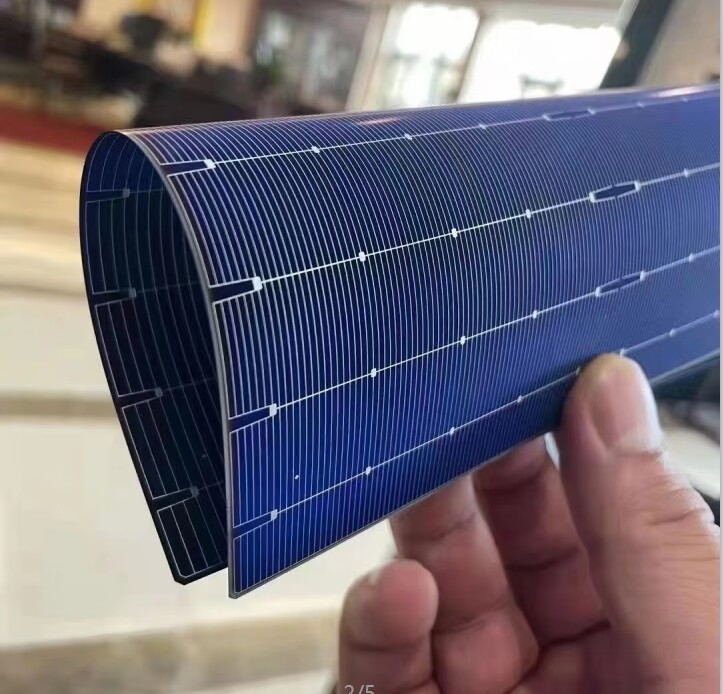

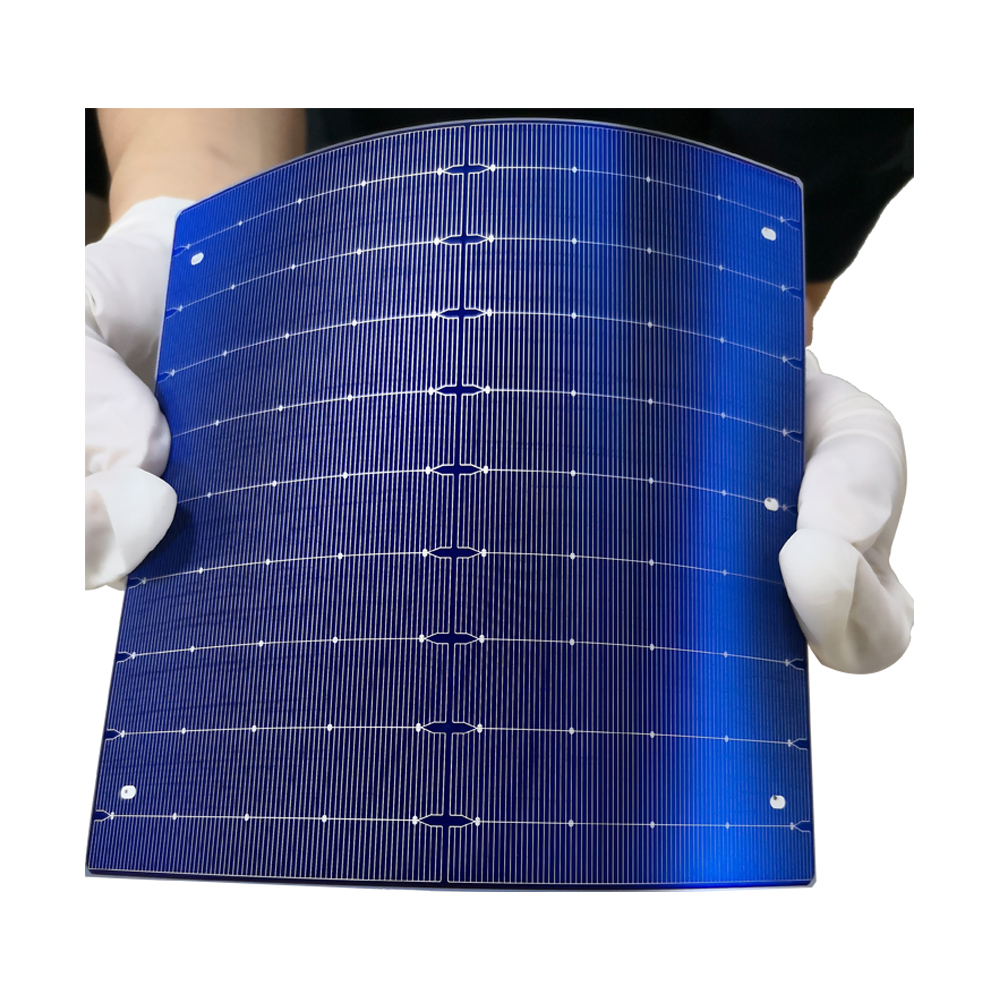

Type: HJT solar cell, Flexible solar cell

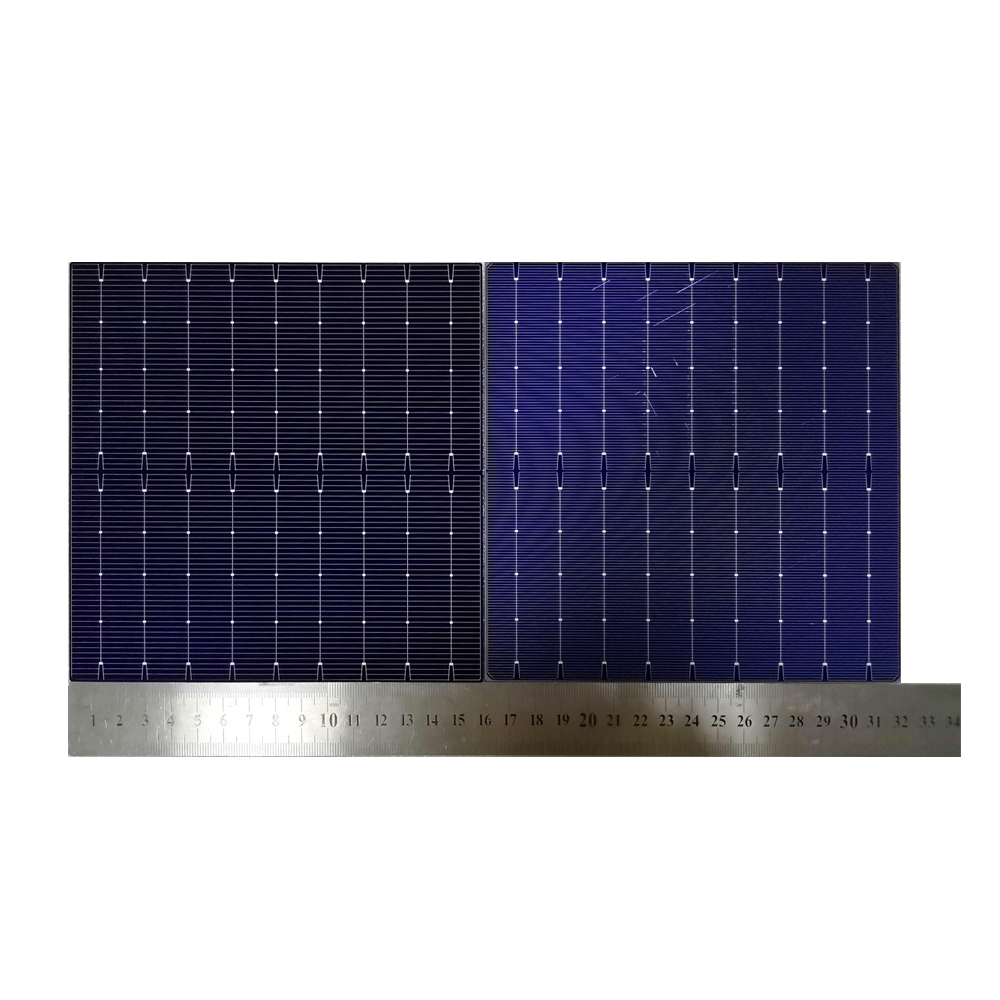

Size: 158.75*158.75 mm
Power watt: 5.8 W
Cell Efficiency: 23%
Cells Weight: 1.5kg/120pcs
Color: Dark Blue
Stock ability: 100K pcs stock
Package size per batch:22X24X10 cm
Gross weight per batch:5.000 kg
Package Type:Typical package for 1 pallet contains 24 cartons, 1 carton contains 1,680cells. The cells are sealed in cell box every 120pcs. Gross weight per unit carton shall be around 19.3kgs.

CHARACTERISTICS

Wafer Thickness 150μm±20μm

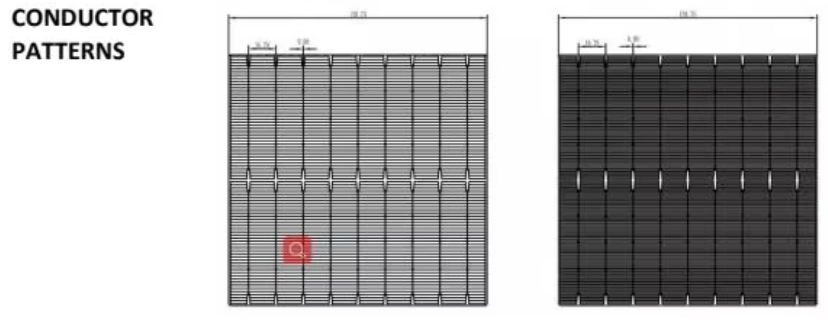

Front(-): 9pcs main busbar lines, each line width0.08mm
Back(+): 9pcs main busbar lines, each line width 0.08mm

TYPICAL              Voc(V)              -0.238%/K

TEMPERATURE    lsc(A)               +0.038%/K

COEFFICIENTS     Pmax(W)          -0.268%/K
