Hot Sale Customized Ultra Corrosion Resistant 120w Mono ETFE Flexible Marine Solar Panels built-in bypass diode for Yachts Boats Ship etc

Hot Sale Customized Ultra Corrosion Resistant 120w Mono ETFE Flexible Marine Solar Panels built-in bypass diode for Yachts Boats Ship etc

Industry Specific Attributes
Cell size: 182*182mm

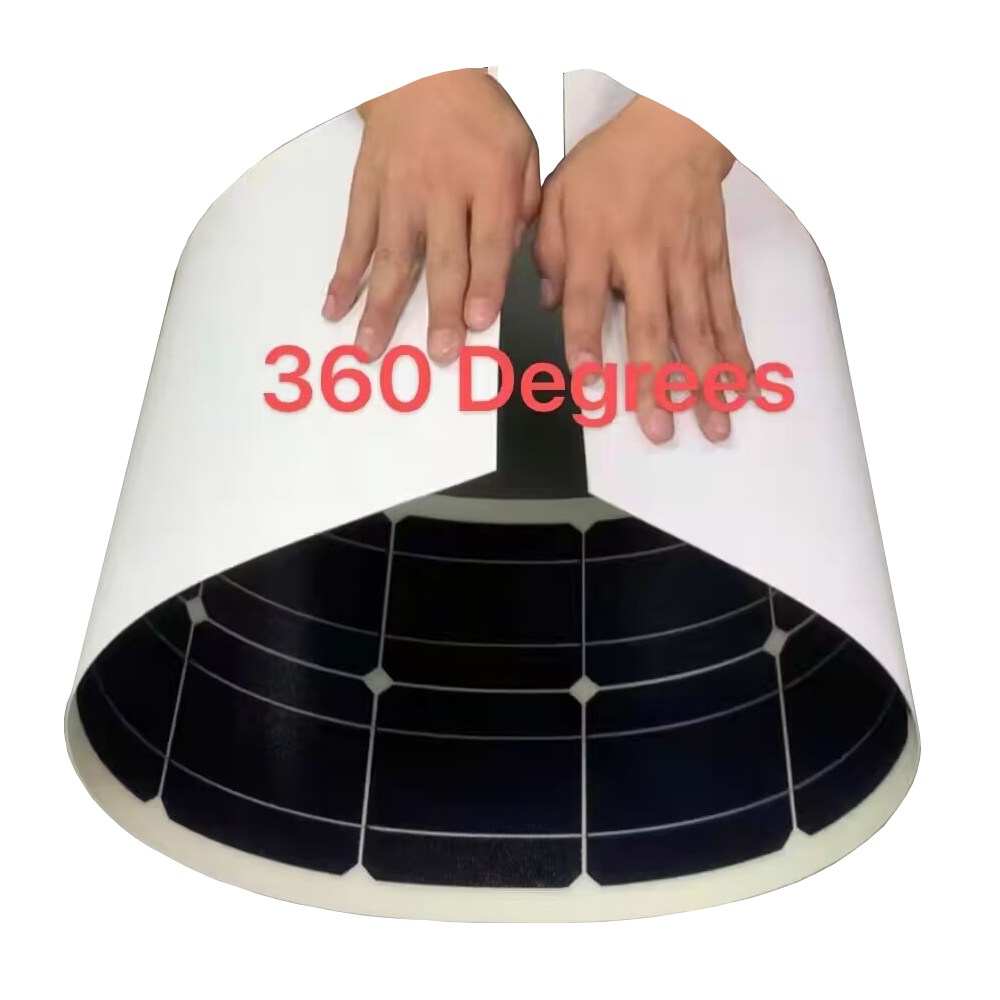

Type :  Flexible
Place of Origin:    China
Brand Name:    XXR /OEM
Materials: ETFE + EVA+ mono solar cell +PET +backsheet+ by pass diode+ junction box
Model Number    : XXR- marine solar panels built-in bypass diode

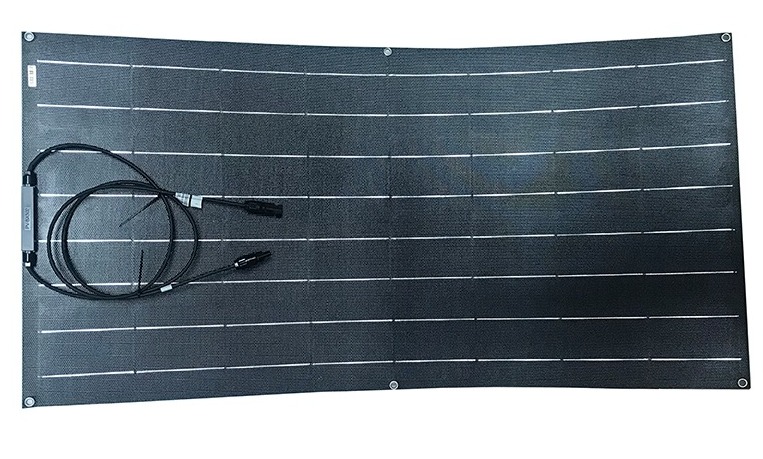

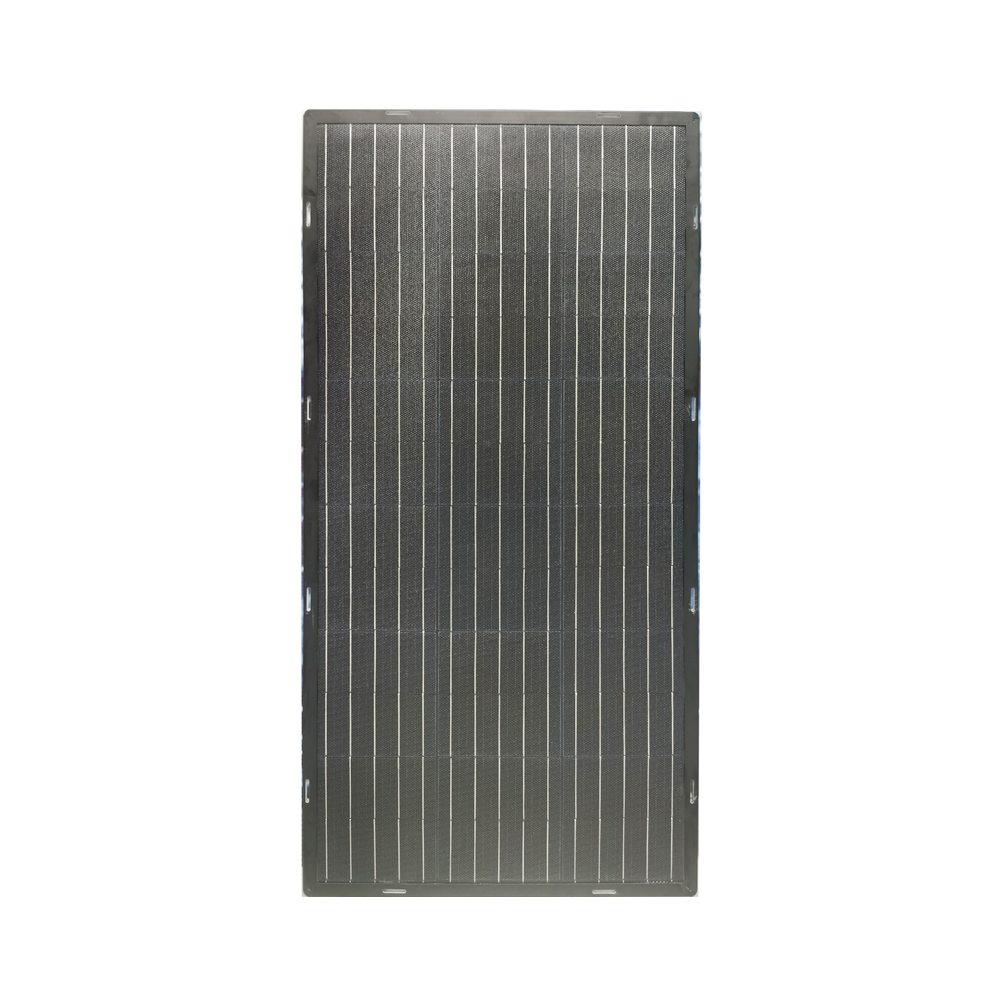

Product name:   120W Mono ETFE Flexible Marine Solar Panels

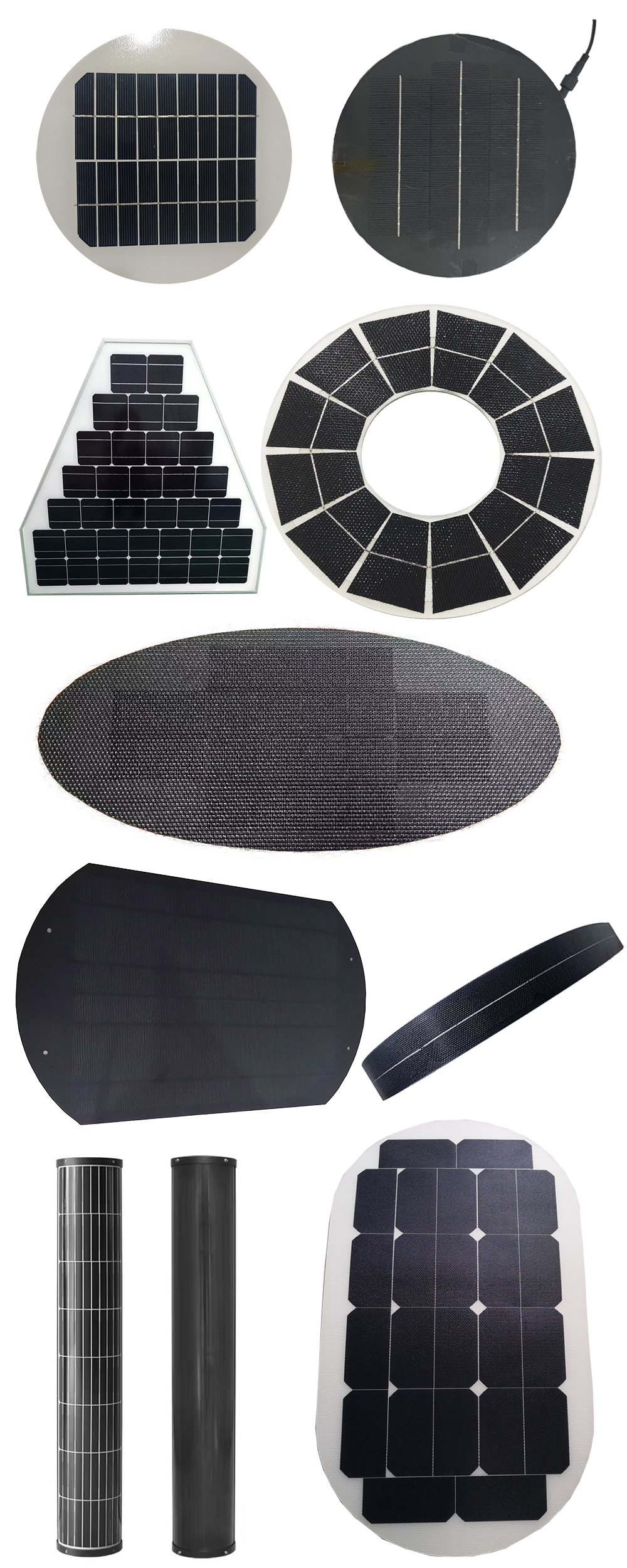

Type:    Customized Solar Panels
Dimension: (LxWxH)1490x410*3mm
Power :120W
Voltage:16.5V
Junction Box: IP67 Rated Waterproof
Connector : Male/Female/Fuse
OEM Order :Acceptable
Operate Temperature: -40℃ ~+85℃

DETAILED IMAGES

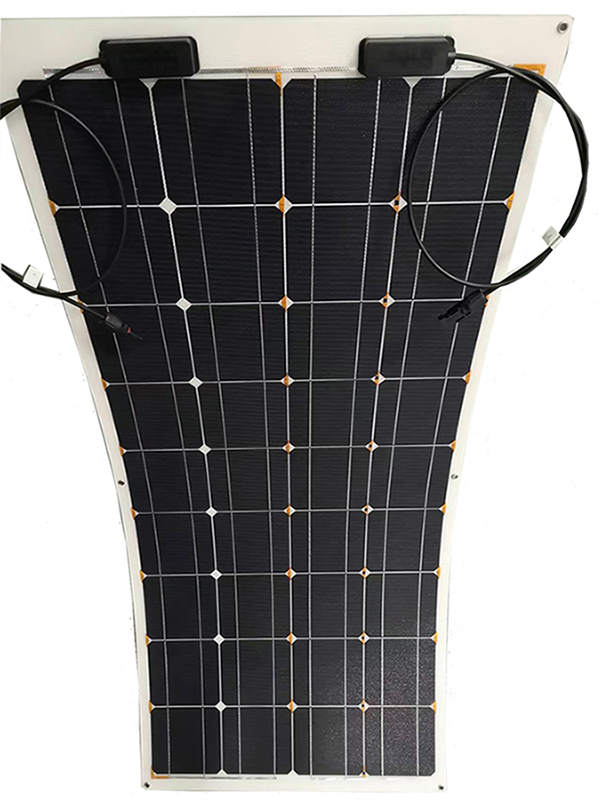

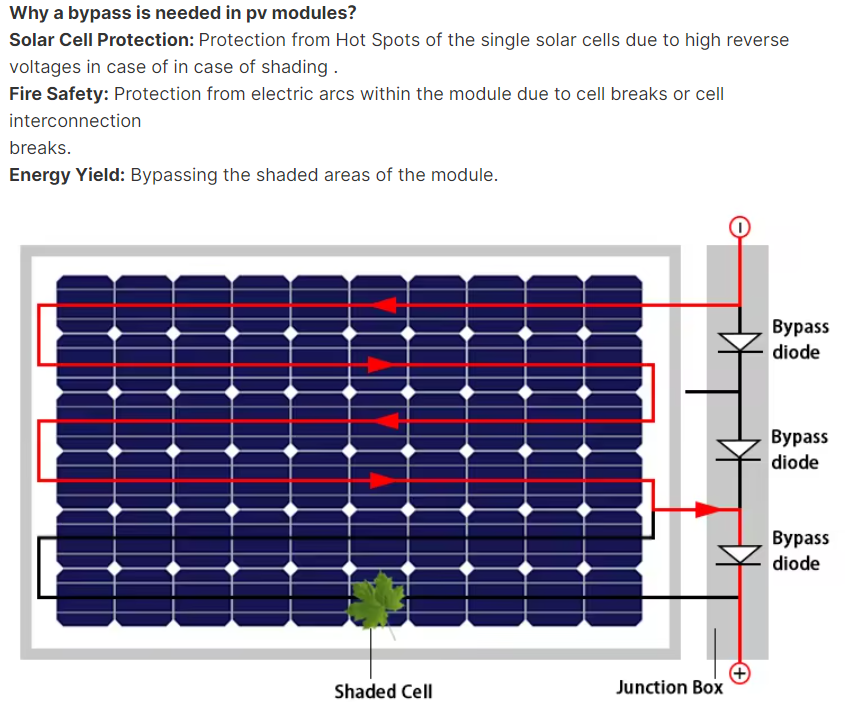

What is a bypass diode & why by pass diode in solar panel?

Bypass Diodes are connected in photovoltaic arrangements for the protection of such cells thatare completely under the solar light and working properly from such cells that are not working ornot in the solar light.
The principal fact of the power failure of the solar cell is the shading, that reduced the quantity ofthe light coming to the light. Shading can be due to some tree, wall of the house, or any otherbuilding.
If the shading remains on some cells of the panel there will be less power generation through thispanel.
So how can we protect a photovoltaic cell, panel or even a full array from the destructive effectsof partial or full shading. One simple and effective way to protect photovoltaic cells from againstthe destructive effects of cell shading is to connect what is called a Bypass Diode across each Pvcell of a series-connected string.

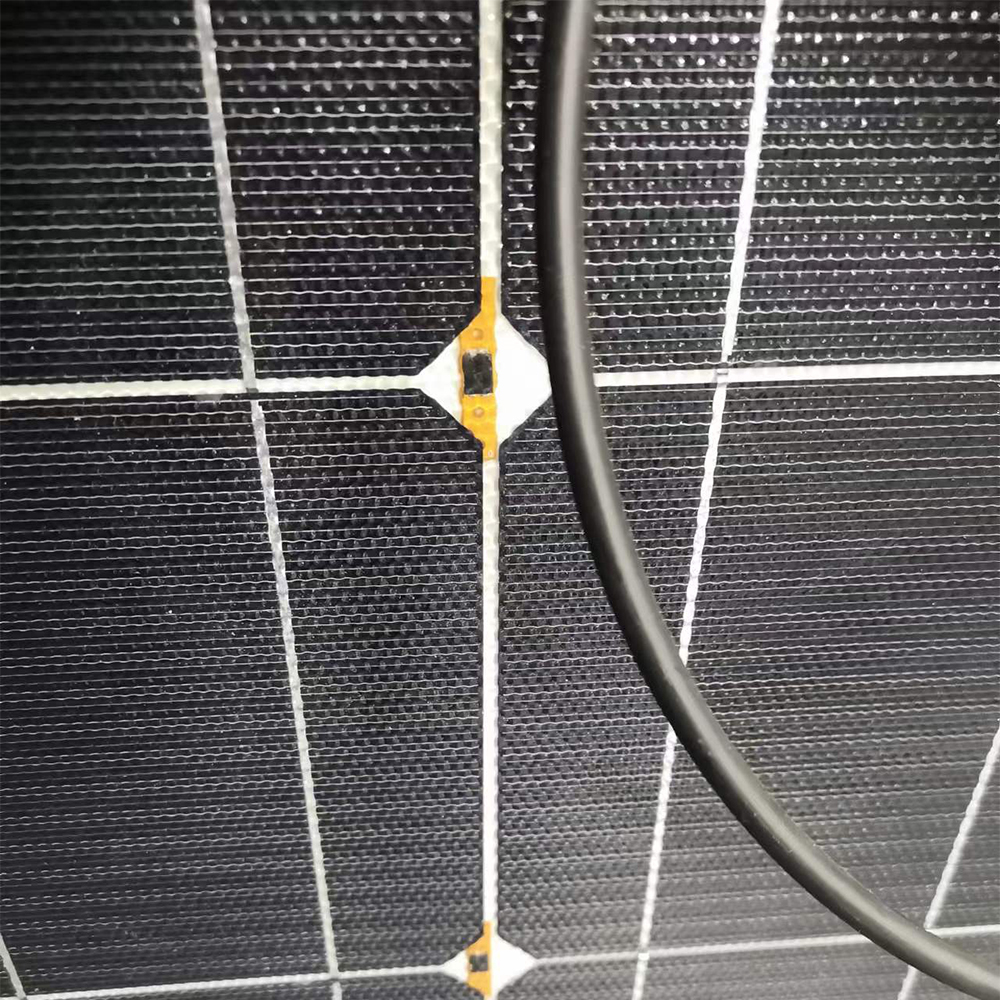

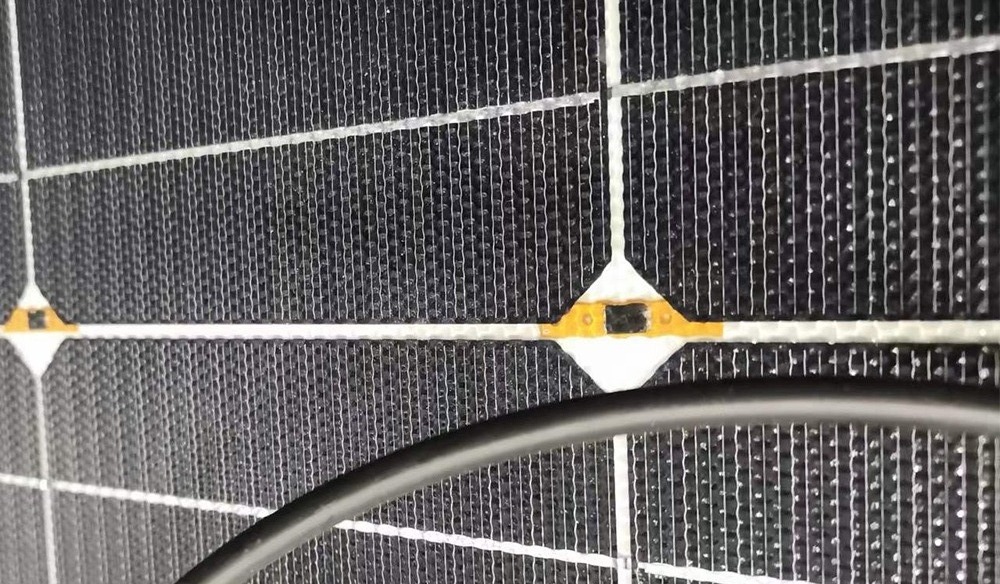

Bypass diodes  for Photovoltaic Panels,are connected externally and in reverse parallel with a PV cell to provide analternative electrical path for the generated current to flow as it cannot flow through the cell whenshaded. This helps preserve the performance of the series string by restricting the reverse biasvoltage generated across any partially shaded cell and hence reduce the electrical power whichcan be dissipated by the cell.

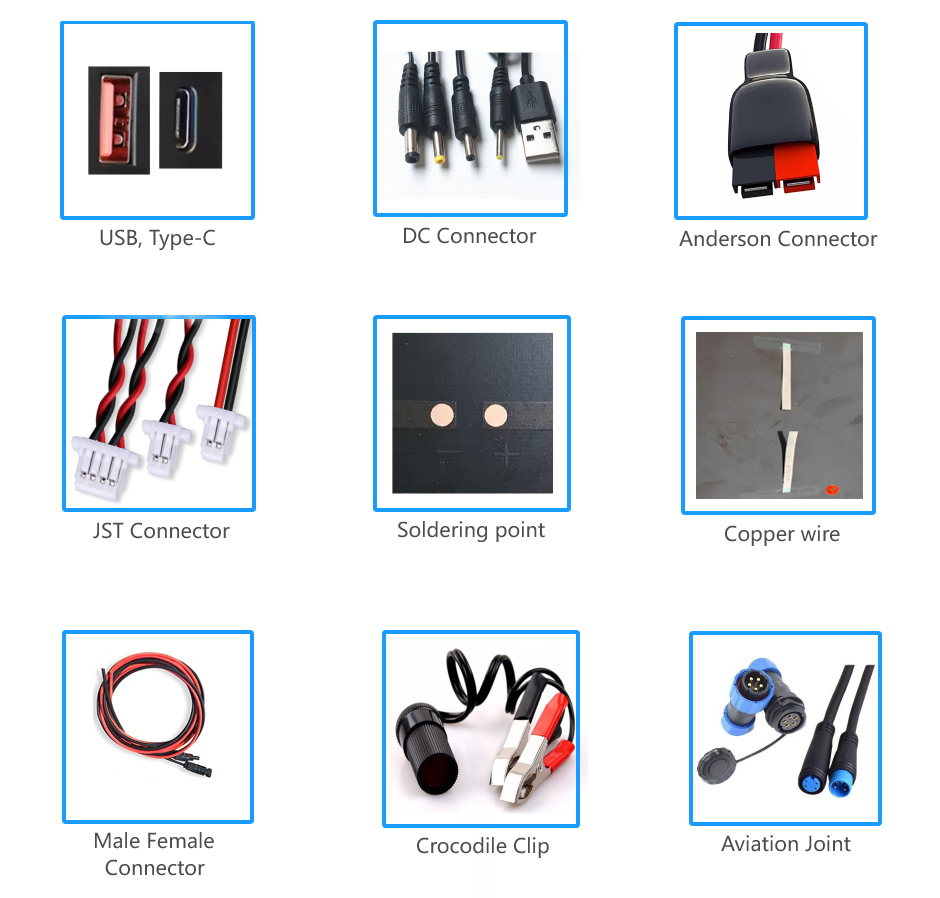

Connector ---Can use different connectors
