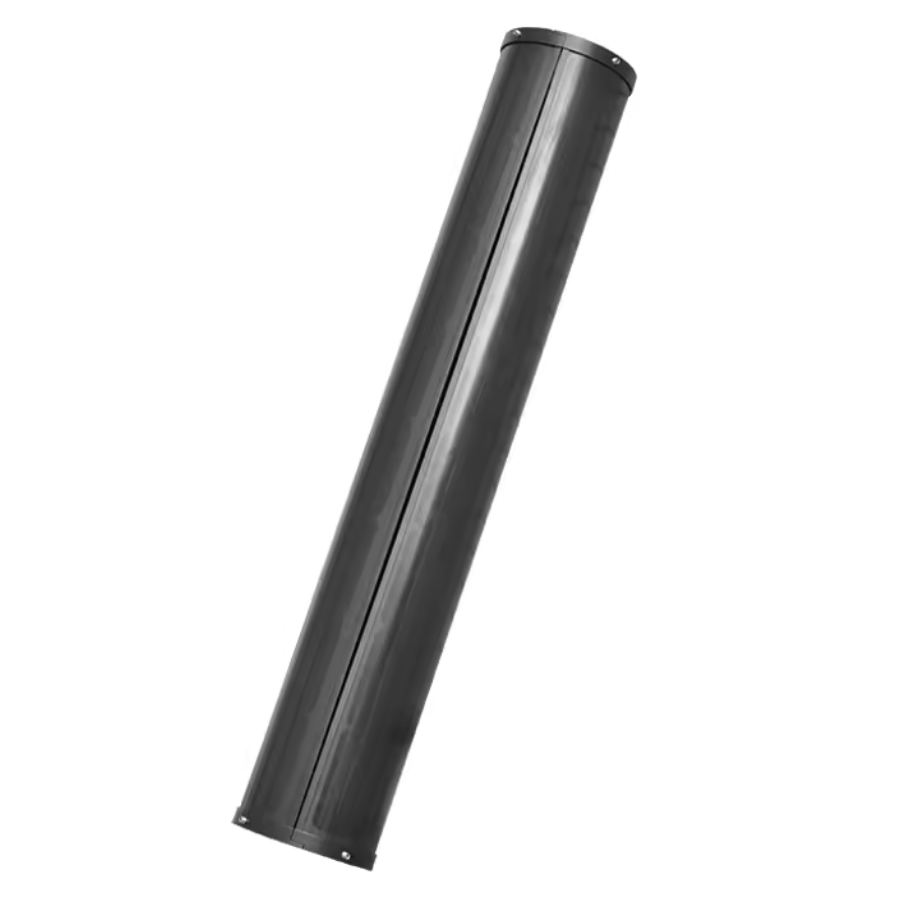

100watt IBC Glass Solar panel easily Install on Street light pole. Custom Tubes shape or barrel shape .
Barrel shape Tubes shape custom design Solar Panel 100watt IBC Glass Solar panel easily Install on Street light pole
SPECIFICATIONS
Product name - 100W Sunpower circle shape Glass panel
material- monocrystalline silicon + tube shape PV glasss+ PET +EVA+junction box+ tube shape housing
Item No. XXR - Sunpower Solar Glass Tubes panel - 100W
Module Size(mm) 1030(high)*170(diameter)*4.2mm
Installation size (mm) 70mm<diameter<135mm
Module Max Power(Pmax) 100w
Max Power Voltage(Vmp) 22V
Max Power Current(Imp) 4.54A
Open Circuit Voltage(Voc) 25.96V
Short Circuit Current (Isc) 4.99A
Module Efficient STC (%) 21.9%
System voltage 1000V DC
Operating Temperature(℃) -40℃ ~+85℃
Power tolerance 0~+3W
Temperature coefficient of Pmax -0.42%/℃
Temperature coefficient of Voc -0.32%/℃
Temperature coefficient of Isc 0.05%/℃
Nominal operating cell temperature(NOCT) 45 ± 2℃
Warranty 6 years
STC·AM=1.5,lrradiance1000W/m2,Operating Temperature:25°C
Mechanical Characteristics
Solar Cell Type: Sunpower 125mm
Number of cells ： 5*8pcs*2
Dimension : 1030(high)*170(diameter)*4.2mm
Weight :6.75KG
Color :Black, White
Junction Box:Waterproof IP67 Rated
Output Cables:PV cables negative & positive , TUV 1*4.0mm^2, Length: 900mm
The tube shape panel size/voltage/shape/power/connector...all can be customized.. please contact us if you need any others
SOME STEPS TO CUSTOM YOUR SOLAR PANEL
Step 1: Tell us your requests about power/voltage/shape/size.....(contact us if you are not sure).
Step 2: check our optional design and quotation
Step 3: confirm samples and bulk production
Custom made solar panel example
This product is customized type ,suggest bellow for your battery Or CONTACT US
tube shape solar panel different production process , features of different coating:
Type: Epoxy
Features: Thickness—about 2.1~2.4mm
1. Good stability without no discolouration
2 .Higher water-proof
3. Better sealing property
4. Light transmission: ＞91%
5. Operating temperature: -20~50℃
Lifespan: 5-8 years
Type:PET
Features: Thickness—about 2~2.8mm
1. Higher scratch resistance ability
2. Better self-cleaning ability
3. Light transmission: ＞90%
4. Operating temperature:-20~50℃
Lifespan:5-8 years
Type:ETFE
Features: Thickness—about 2~3mm
1. Thin ultra lightweight and durable
2. Highly stain-resistant and easily get cleaned by itself
3.Highly resistant to seawater corrosion
4. Absorbs sunlight, no reflection
5. Light transmission:＞95%
6. Operating temperature: -20~60℃
Lifespan:10-12 years
Type:Glass
Features:Thickness—about 4~5mm ( frameless)
1. Stronger surface resistance for mechanical loads
2. Higher reliability and water restistance
3. Longer life time
4. Lower temperature coefficient
5. Available for long-time outdoor use
6. Operating temperature: -40~80℃
Lifespan:15-20 years
